HPGR Cemented Tungsten Carbide Buttons Drill Bit For Stone Drilling
Oil Field

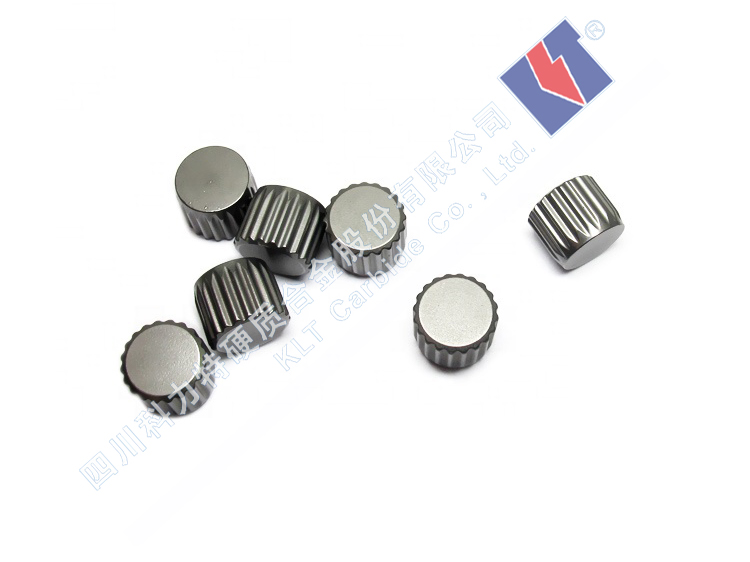

Tungsten carbide studs for high pressure grinding roll, it install
on the high pressing machine,It can help to Increase wear
resistance, then can use more long time.
A, ultra-coarse grain carbide material, 100% alloy through pressure
sintering, the drill bit hardness and toughness while increasing by
30%.
B, unique design, boring faster 20%, life expectancy increased by
30%.
C, imports of selected high-grade steel to make pants body, to
ensure consistent overall performance drill, pants body is not
broken.
Product Description
Product Name | Tungsten Carbide Insert Bits | Material | 100% Raw Material |
Color | Silver grey | Shape | Customer's Request |
Size | Customer's Request | Certification | ISO9001 |
Usage | Mining | Type | Insert Bits |
Chemical composition | WC+CO | Tolerance | Customer's Request |
Lead time | 7-20 Days | MOQ | 100 Pcs |
Working life | Long Work Time | Port | Any Port in China |
Grade and Properties
Grade | Chemical properties | Physical and mechanical properties |
WC | Co | Additive | Density g/cm3 | Hardness HRA (HV) | Bending Strength
(N/mm2)
≥ |
YG6 | Balance | 5.8～6.2 | ≤0.5% | 14.75～15.0 | 91.0～92.5 | 2000(2500) |
YG8 | Balance | 7.8～8.2 | ≤1% | 14.5～14.9 | 90.5～92.0 | 2100(2800) |
YG10 | Balance | 9.8～10.3 | 0% | 14.2～14.6 | 89.0～91.0 | 2600(3200) |
YG13 | Balance | 12.7～13.2 | ≤1% | 14.0～14.3 | 87.0～89.0 | 2400(3000) |
YG20 | Balance | 19.5～20.5 | 0% | 13.4～13.6 | 83.0～85.0 | 2600(3000) |
Reference Drawing
,
Tungsten Carbide Buttons use
Tungsten Carbide Buttons have their unique working properties, so they are widely used in:
1. Oil drilling and snow shovel, snow plow machines and other
equipment.
2. Used for coal mining machine drilling tools, mining machinery
tools and road sweeping snow removal and road maintenance tools.
3. Tools for quarrying, mining, tunneling, and civil construction.
4.Drilling hole drills, thread drills and other alloy drills.
Tungsten Carbide Buttons produced by our company have several
advantages
1. Made of raw materials with high abrasion resistance and
durability
2. Overpressure sintering to increase the density of alloy teeth
3. Quality assurance, can be customized according to the picture.
Packaging & Delivery
Packing Details:
Plastic Boxes Inside and Cartons Outside
Port:
Guangzhou/Shanghai/Shenzhen/Dalian etc.
Delivery Details:
Generally it is 5-7 days if the goods are in stock.
Or it is 20-30 days if the goods are not in stock, it is according
to quantity.
Q&A
Q1:Can i get samples before my order ? A:We provide free samples to every customer , But,we need to freight collect .Or freight prepaid.
Q2:How long it will be to get samples? A:For stocked production,It only 1 day for sending you sample . For customized production drawing,it may be within 15-25 days samples.
Q3:What is the delivery time if i place my order ? A:It depends on the complexity of the production ,or The quantity you ordered . If It is our standard project ,We will only need 5-7 working days
to send out your goods. If your have an urgent deadline ,we'll see what we can do .
Q4:Can I Put My Logo On The Product? A:Yes ,You can . Your Logo Can Be Put On the Product By Mould Punching ,Laser Making
,Silk-Screen etc.
Q5:Is It Possible To Get My Customized Packaging ? A:Yes ,Of course ,We Help customers to make unique packaging for 15
years . |
