    Api6a Standard Tungsten Carbide Alloy Hard Metal Valve Core Valve Component

    Ask Lasest Price
    Brand Name : KLT
    Model Number : Carbide Valve Trim
    Certification : ISO9001:2008; ISO14001:2004
    Delivery Time : 35 Days
    Supply Ability : 40 Tons Per Months
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Price : To be negotiated
    • Product Details
    • Company Profile

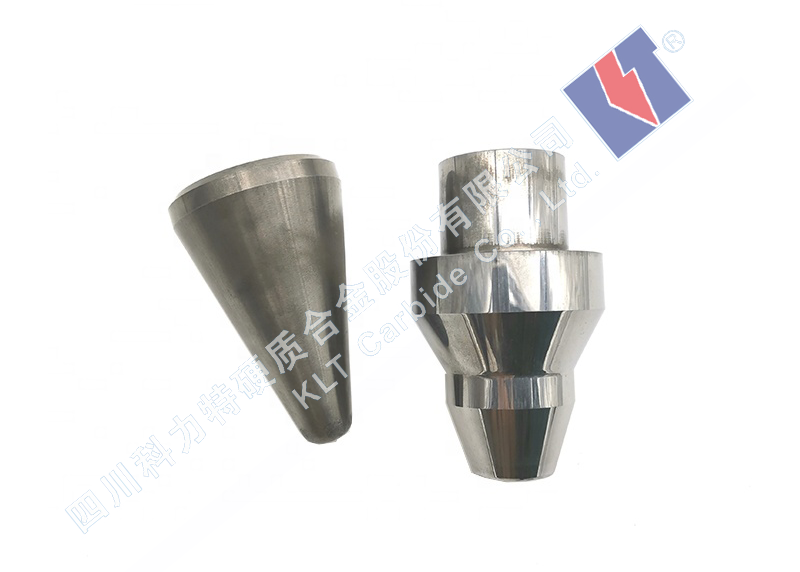

    Api6a Standard Tungsten Carbide Alloy Hard Metal Valve Core Valve Component

    API6A Standard Customized Tungsten Cemented Carbide Hard Metal Valve Core Valve Component


    Product Description


    Carbide Valve Trim has a series of excellent properties such as high hardness, wear resistance, good strength and toughness, heat resistance and corrosion resistance, especially its high hardness and wear resistance, which remain basically unchanged even at a temperature of 500 ° C , Still high hardness at 1000 ℃.Our company can customize various non-standard hard alloy wear-resistant products. Common grades: YG8, YG10, YG13, YG11C, etc.Non-standard hard alloy products, wear-resistant parts and various non-standard shaped alloy blanks, stretching, shaping, cold heading, cold extrusion and hot forging dies for various industries, etc., are widely used in various industries for stretching and shaping dies. Such as stainless steel tableware, utensils, hardware accessories stretching, forming, and non-magnetic molds for the magnetic industry.


    Carbide Valve Trim produced by our company have several advantages


    1.Excellent sealing and wear resistance.
    2.Smooth and flat surface.
    3,Can be customized according to drawing.


    Grade and Properties
    GradeChemical propertiesPhysical and mechanical properties
    WCCoAdditiveDensityHardness HRABending Strength
    g/cm3(HV)(N/mm2)
    YG6Balance5.86.2≤0.5%14.7515.091.092.52000(2500)
    YG8Balance7.88.2≤1%14.514.990.592.02100(2800)
    YG10Balance9.810.30%14.214.689.091.02600(3200)
    YG13Balance12.713.2≤1%14.014.387.089.02400(3000)
    YG20Balance19.520.50%13.413.683.085.02600(3000)
    GradeChemical propertiesPhysical and mechanical properties
    WCNiAdditiveDensityHardness HRABending Strength
    g/cm3(HV)(N/mm2)
    YN6Balance6.57.5≤1%14.514.889.092.01800(2200)
    YN8Balance8.09.0≤1%14.414.888.091.02000(2300)
    YN10Balance9.7510.25≤0.5%14.214.687.590.02100
    YN12Balance11.812.5≤1.5%13.914.288.089.02485

    Reference Drawing



    Production Show



    Packaging & Delivery



    Packing Details:

    Plastic Boxes Inside and Cartons Outside


    Port:

    Guangzhou/Shanghai/Shenzhen/Dalian etc.


    Delivery Details:

    Generally it is 5-7 days if the goods are in stock.

    Or it is 20-30 days if the goods are not in stock, it is according to quantity.


    Why Choose Us



    Q&A


    Q1: Are you a factory or a trading company?
    A: We are a factory. We have been focusing on Tungsten Carbide for over 30 years.

    Q2:What is your principle for the samples?
    A: We offer free samples if you are willing to pay the freight.

    Q3:What is your delivery time?
    A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 30 to 35 days when there is no stock.

    Q4:Do you have any test reports or certificates?
    A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference.

    Q5: Do you provide after-sale service?
    A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement.
