Cross Bonding Threaded Nozzle Overall Injection Molding Tungsten Carbide Nozzle

    Buy cheap Cross Bonding Threaded Nozzle Overall Injection Molding Tungsten Carbide Nozzle from wholesalers

    Buy cheap Cross Bonding Threaded Nozzle Overall Injection Molding Tungsten Carbide Nozzle from wholesalers
    • Buy cheap Cross Bonding Threaded Nozzle Overall Injection Molding Tungsten Carbide Nozzle from wholesalers

    Cross Bonding Threaded Nozzle Overall Injection Molding Tungsten Carbide Nozzle

    Ask Lasest Price
    Brand Name : KLT
    Model Number : Tungsten Carbide Cross-bonding Threaded Nozzle
    Price : To be negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 40 Tons Per Months
    Delivery Time : 35 Days
    Certification : ISO9001:2008; ISO14001:2004
    • Product Details
    • Company Profile

    Cross Bonding Threaded Nozzle Overall Injection Molding Tungsten Carbide Nozzle

    Cross-bonding Threaded Nozzle Overall Injection Molding Wear-resistant 100% Original Carbide


    Product Description


    Because of its simple structure, diamond drill bits have high strength, high wear resistance and impact resistance. It was in the 1980s.One of the three new drilling technologies in the world. Field use proves that diamond bits have speed when drilling in soft-medium hard formations.Fast, more footage, long life, stable work, fewer downhole accidents, good well quality and so on. Carbide tungsten steel nozzle.As one of the important parts in the diamond drill bit, it has the cleaning effect on the drill bit and the bottom of the well and the hydraulic rock breaking effect of the nozzle.Conventional nozzles are cylindrical and can produce a balanced pressure distribution on the rock surface.
    In drilling operations, inhibiting the formation and development of bit mud packs is very important to improve drilling speed and ensure drilling safety. PDC Bit directional nozzle is a type of jet nozzle with one or more side holes. It is installed on the PDC bit, and the drill is cleaned by multiple jets.Head to minimize the generation of mud packs and cool the cutting teeth.

    Cross-bonding Threaded Nozzle Threaded Nozzle produced by our company have several advantages


    Fast speed, more footage, long life, stable work, fewer downhole accidents, good wellbore quality, etc.


    Grade and Properties
    GradeChemical propertiesPhysical and mechanical properties
    WCCoAdditiveDensityHardness HRABending Strength
    g/cm3(HV)(N/mm2)
    YG6Balance5.86.2≤0.5%14.7515.091.092.52000(2500)
    YG8Balance7.88.2≤1%14.514.990.592.02100(2800)
    YG10Balance9.810.30%14.214.689.091.02600(3200)
    YG13Balance12.713.2≤1%14.014.387.089.02400(3000)
    YG20Balance19.520.50%13.413.683.085.02600(3000)
    GradeChemical propertiesPhysical and mechanical properties
    WCNiAdditiveDensityHardness HRABending Strength
    g/cm3(HV)(N/mm2)
    YN6Balance6.57.5≤1%14.514.889.092.01800(2200)
    YN8Balance8.09.0≤1%14.414.888.091.02000(2300)
    YN10Balance9.7510.25≤0.5%14.214.687.590.02100
    YN12Balance11.812.5≤1.5%13.914.288.089.02485

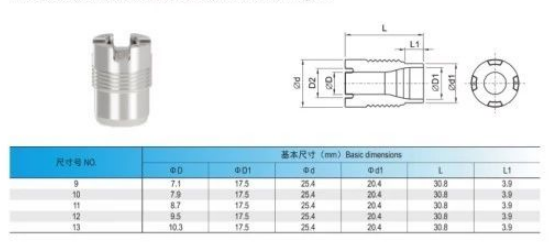

    Reference Drawing



    Packaging & Delivery


    Packing Details:

    Plastic Boxes Inside and Cartons Outside


    Port:

    Guangzhou/Shanghai/Shenzhen/Dalian etc.


    Delivery Details:

    Generally it is 5-7 days if the goods are in stock.

    Or it is 20-30 days if the goods are not in stock, it is according to quantity.


    Q&A


    Q1: Are you a factory or a trading company?
    A: We are a factory. We have been focusing on Tungsten Carbide for over 30 years.

    Q2:What is your principle for the samples?
    A: We offer free samples if you are willing to pay the freight.

    Q3:What is your delivery time?
    A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 30 to 35 days when there is no stock.

    Q4:Do you have any test reports or certificates?
    A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference.

    Q5: Do you provide after-sale service?
    A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement.

    Our Quality Contral


    Tungsten Carbide Threaded Nozzle for Tricone Bits Cross-bonding Overall Injection Molding


    1. Made from 100% virgin raw material;
    2. Produced with advance equipments and process;
    3. All products go through in-process and final inspection;
    4. Stable and continuous production ability;
    5. Quality and quantity assured;
    6. In standard-standard types;
    7. One of our most hot selling item that we are currently producing.
    The high quality tungsten carbide
    Nozzle has a long service life, which is beneficial to save auxiliary working hours, reduce manual labor and speed up engineering.
